Ultrathin High Purity Copper Foil | 4N 6N Copper Metal Foil
| CAS Number | 7440-50-8 |
| Purity | 4N, 5N, 6N |
| Shape | Foil, Sheet |
| Thickness Variation | <0.5 μm |
| Min Packaging | 1 roll/vacuum bag |
| SDS/COA | Email or WA business |
| Capacity | 10 MT/month |
| Ready to Ship | 3-7 days, or by request |
Fast Shipping
30 days return & 12 months warranty
Orders processed
within 24 hours
Basic Information

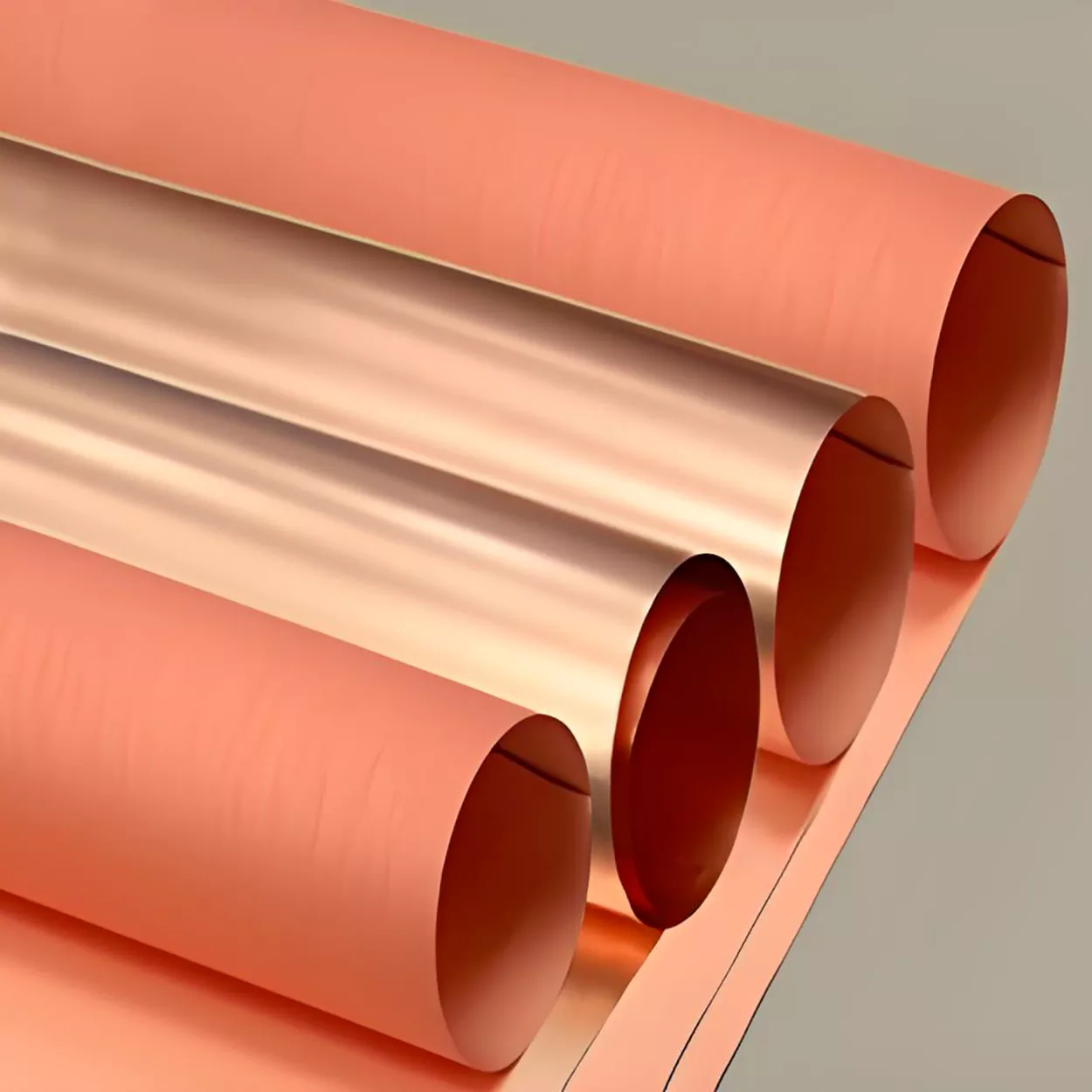

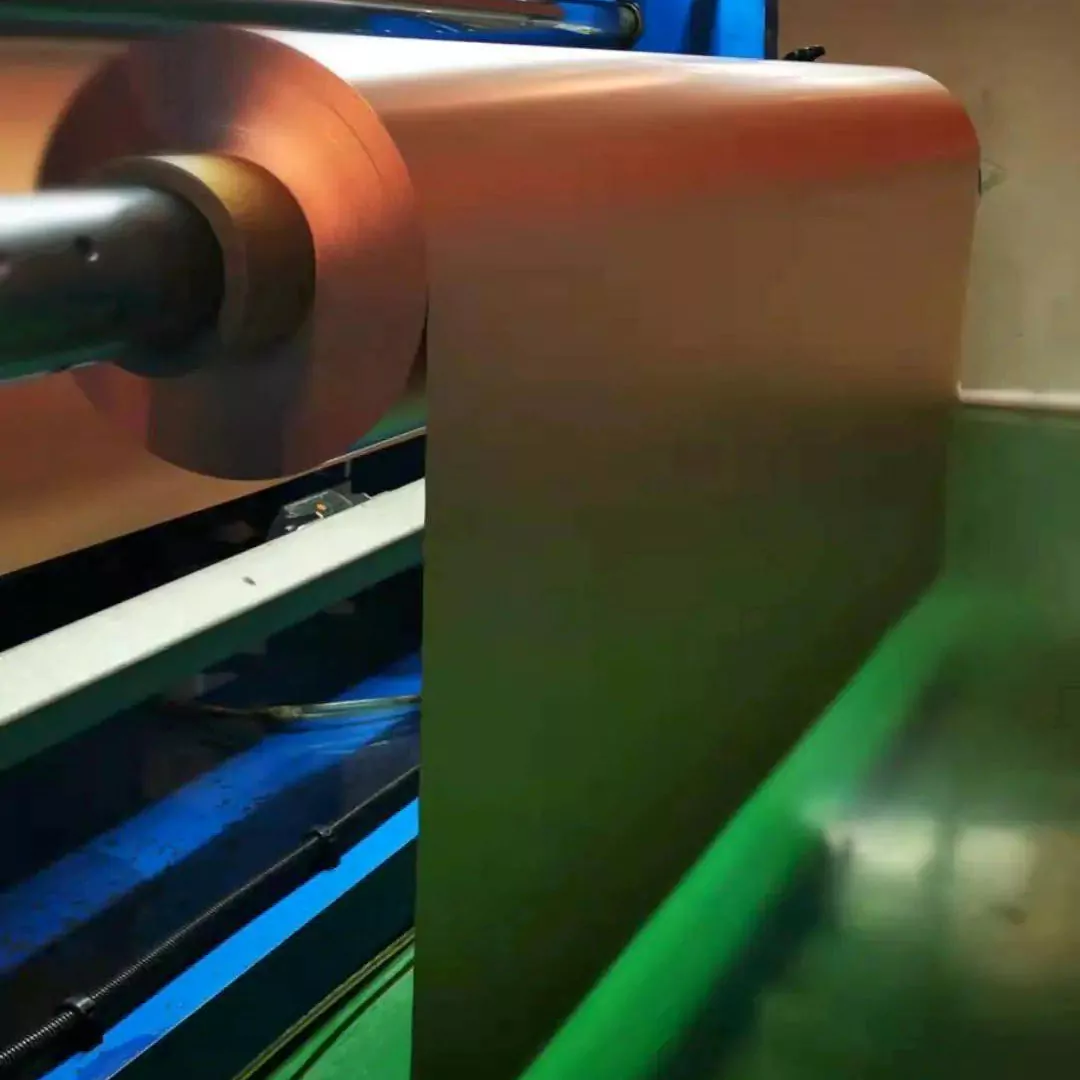

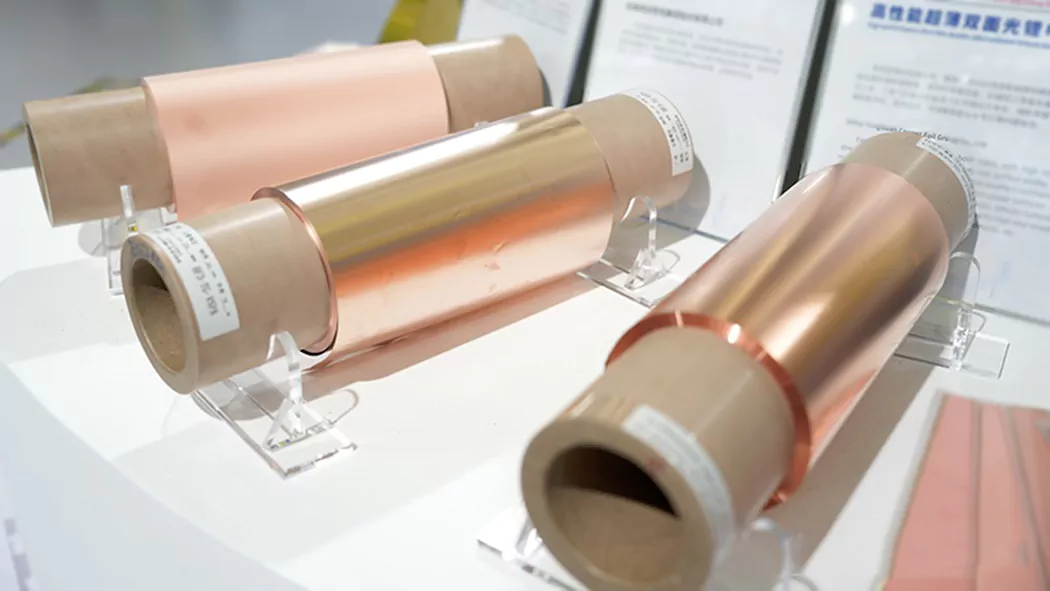

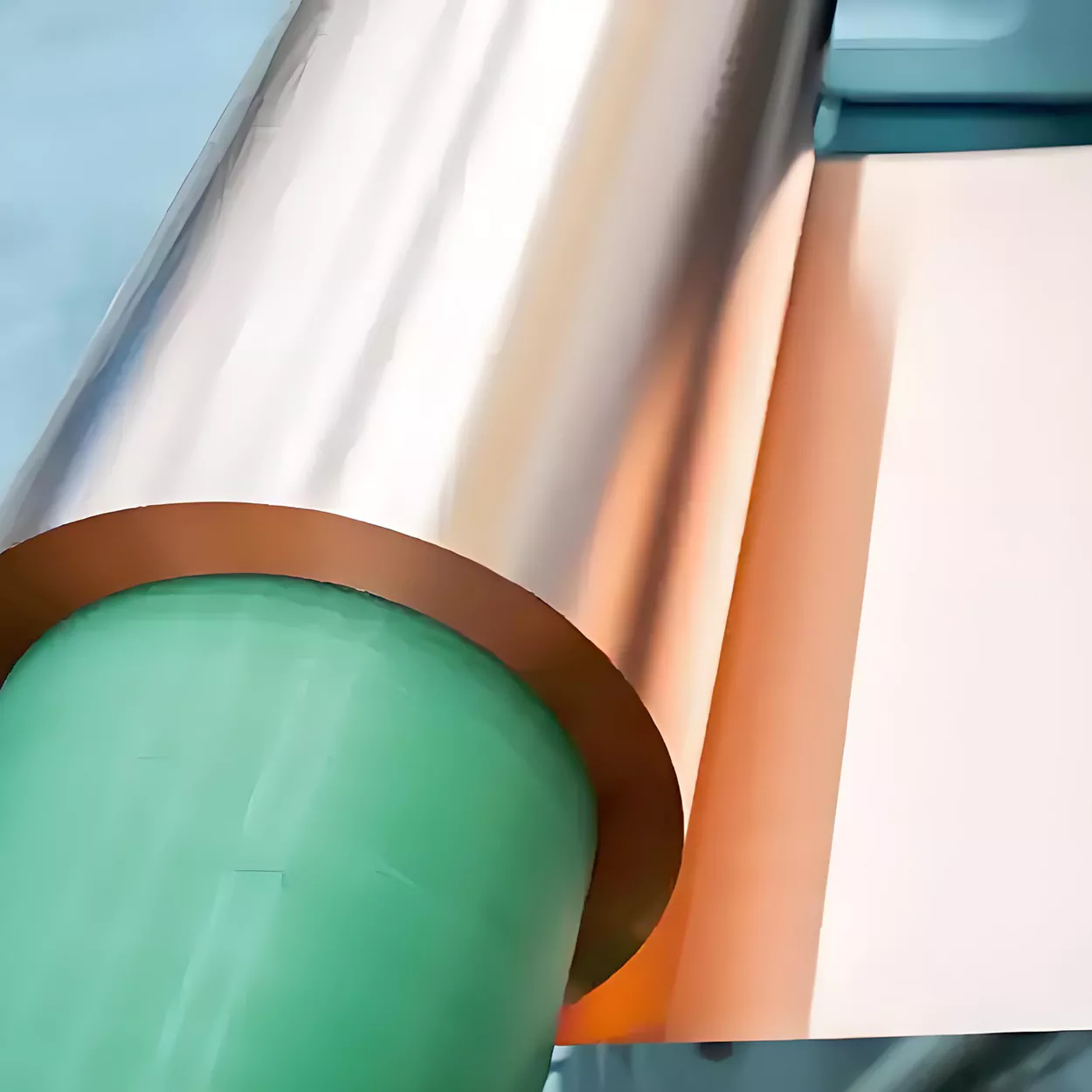

Custom Rare Metal manufactures high purity Copper Foil and sheets in various thicknesses and sizes. Most foils are produced from raw material high purity electrolytic copper by electrolytic deposition. Then we adopt multi-pass cold rolling process to make the copper foil with uniform thinness and high surface finish. Finally, special surface treatment process is adopted to make the surface finish of copper foil higher and improve its application in high-speed signal transmission. Thickness can range from 0.008 to approximately 2mm for copper metals. Some coppers can also be rolled down as thin as 0.0035mm. Forms include powder, granule, wire, and other sizes are available by request.
Available Forms
- Copper Foil
- High Purity Copper Crystal

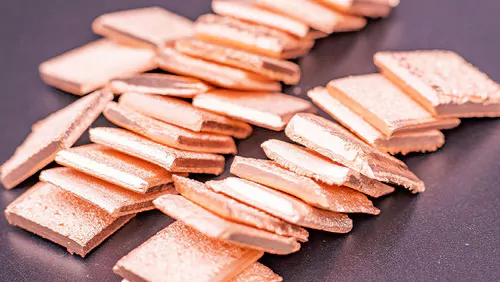

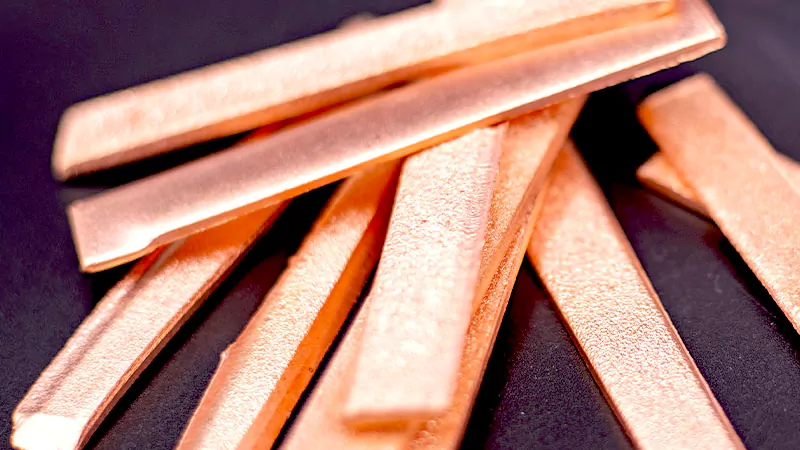

- High Purity Copper Piece
- High Purity Copper Wire
- High Purity Copper Granule
- High Purity Copper Powder
- High Purity Copper Alloys
Also, we produce metal copper as cube, rod, bar and nanopowder. High purity copper foil may be purchased in bulk or small quantity.
High Purity Copper Foil Quality Criterion
| Specification | Cu – 4N (99.99%) | Cu – 5N (99.999%) | Cu – 6N (99.9999%) |
| Total Impurities | ≤ 100ppm | ≤ 10ppm | ≤ 1ppm |
| *Our stringent copper metal production processes ensure the absolute minimum amount of impurities including oxygen. Please ask us for further information on which impurities can be controlled to lower levels. | |||
High Purity Copper Applications
- Pole piece for new energy battery
- Superconducting MR magnets in medical devices
- Synchrotrons, cryogenic systems
- Precursor materials for compound semiconductors such as copper indium gallium selenide (CIGS)
- High purity copper sputtering targets
- Make 5G signal lines
- Bonding wire for electronic packaging
High Purity Copper Foil Technical Data
| Appearance | Rose gold colored solid |
| Chemical Formula | Cu |
| Density | 8.96 g/cm3 |
| Melting Point | 1083.4 °C |
| Boiling Point | 2567 °C |
| Thermal Conductivity | 4.01 W/cm/K |
| Electrical Resistivity | 1.678 microhm-cm at 20 °C |
| Vickers Hardness | 369 MPa |
Customization Production
Please specify desired purity, size, form or drawings. We will let you have NDA and quotation project
Even for only 1 spool, it is available for you as well. If there’s no stock, it takes around 3-5 working days to finish the production, but some types need customize then the lead time would be extra 5 working days.
High Purity Copper Highlights
01
High purity, low impurities
Strict control of raw material and guaranteed purity
02
Excellent electrical and thermal conductivity
Resistance has been reduced by 5% and conductivity is close to silver, which is used by our customers in copper-based alloys and targets with excellent thermal conductivity.
03
High surface finish
- The surface of the product has been specially treated to have a high degree of finish, which ensures its effectiveness in the application of high-speed transmission of signals.
Packaging, Transport and Storage
- Packaging: packed in a vacuum bags, wrapped in poly-foam box and then carton box for shipping. Other packaging options are available. Clearly tagged and labeled externally to ensure efficient identification and quality control. Great care is taken to avoid any damage which might be caused during storage before transit or during transport.
- Transportation: by Fedex, DHL, UPS with door to door delivery, by Air for urgent order and by Sea for bulk order.
- Storage: store copper metals in a dry, vacuum environment to avoid damage and pollution.
